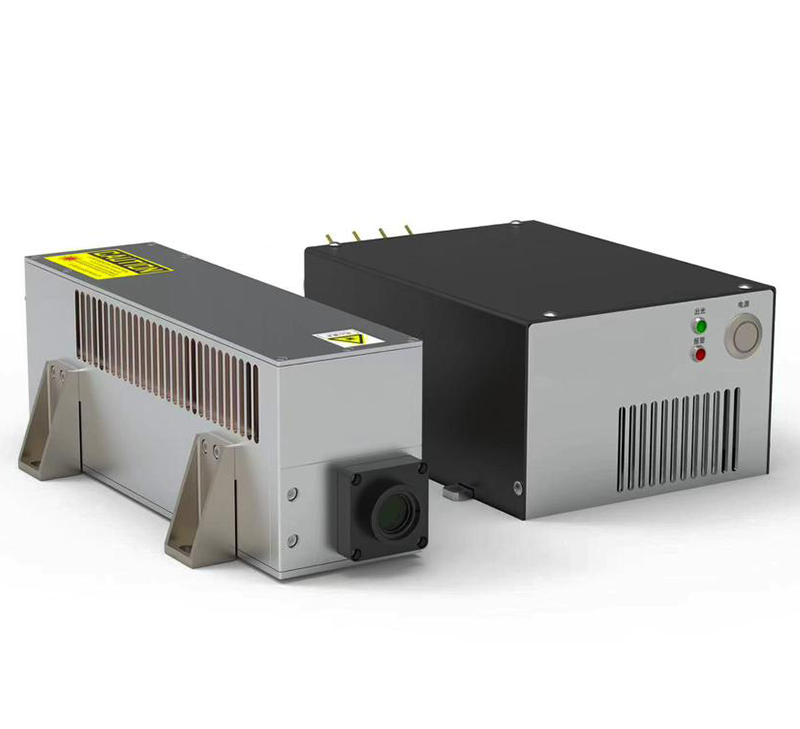

SMSL Series – High-Energy Low-Repetition Solid-State Laser
The SMSL series high-energy low-repetition solid-state laser delivers output energy up to 100 mJ, with wavelength extension available at 532 nm and 355 nm.
The system adopts an integrated laser head and power supply design, featuring a compact structure, low power consumption, and full air-cooling. It is suitable for complex industrial environments, offering high structural stability and reliable 24/7 continuous operation.
Key Features
- Diode-pumped design, long lifetime
- Excellent temperature adaptability
- 24/7 continuous operation
- Mature technology, high reliability
Applications
- Laser radar (LiDAR)
- LIBS / LIF
- Laser ultrasonics
- Biomedical applications
SMSL Technical Parameters
Models
- SMSL-100M
- SMSL-200M
Optical Parameters
- Output energy @1064 nm: ≥100 mJ / ≥180 mJ
- Output energy @532 nm: ≥50 mJ / ≥100 mJ
- Output energy @355 nm: ≥30 mJ / ≥70 mJ
- Energy stability (RMS): ≤2.5% / ≤3%
- Pulse width: 6–8 ns
- Repetition rate: 20 Hz / 10 Hz
- Beam divergence: ≤3 mrad (standard), ≤1 mrad (high-performance)
- Beam diameter: ~5 mm
Functional Parameters
- Communication interface: RS422 / Ethernet
- Trigger mode: Internal / External
- Synchronization signal: Electrical sync / Optical sync
- Power supply: DC 24V
- Cooling: Air cooling
- Power consumption: ≤150 W / ≤400 W
Environmental Parameters
- Operating temperature:
- Standard: –20°C to +55°C
- High-performance: 10°C to 35°C
- Storage temperature: –20°C to +50°C
- Humidity: 0–80% RH
- Vibration: Road transportation vibration
SMSL Mechanical Dimensions
- SMSL-100M laser head dimensions
- SMSL-200M laser head dimensions
- Installation and mounting drawings
