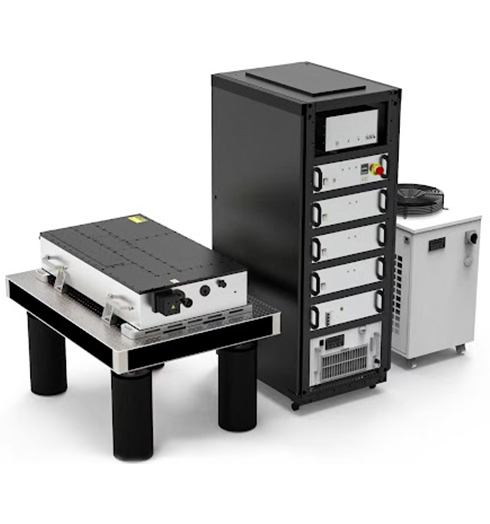

SHSL-SLM Single-Frequency High-Energy Solid-State Laser
The SHSL-SLM series is a high-energy, narrow-linewidth solid-state laser system supportingC, supporting:
- High pulse energy
- High peak power
- Single-frequency operation
- Tunable frequency
It adopts a modular architecture, integrating:
- Seed laser
- Frequency stabilization
- Solid-state amplification
- Nonlinear frequency conversion
Applications
- Mid- and high-altitude atmospheric lidar
- Space debris observation
- Marine sensing
- Imaging systems
SHSL-SLM Technical Parameters
Models
- SHSL-300M-SLM
- SHSL-600M-SLM
- SHSL-1000M-SLM
Key Specifications
- Repetition rate: 100 Hz
- Energy @1064 nm: ≥280 / ≥600 / ≥1000 mJ
- Energy @532 nm: ≥140 / ≥300 / ≥450 mJ
- Energy @355 nm: ≥100 / ≥200 / ≥350 mJ
- Pulse width: 6–10 ns
- Beam quality: M² <2.5 / <3.5
- Frequency tuning range (optional):+200 MHz to +3.6 GHz, –3.6 GHz to –200 MHz
- Cooling: Water cooling
- Power supply: AC 220V / 380V
