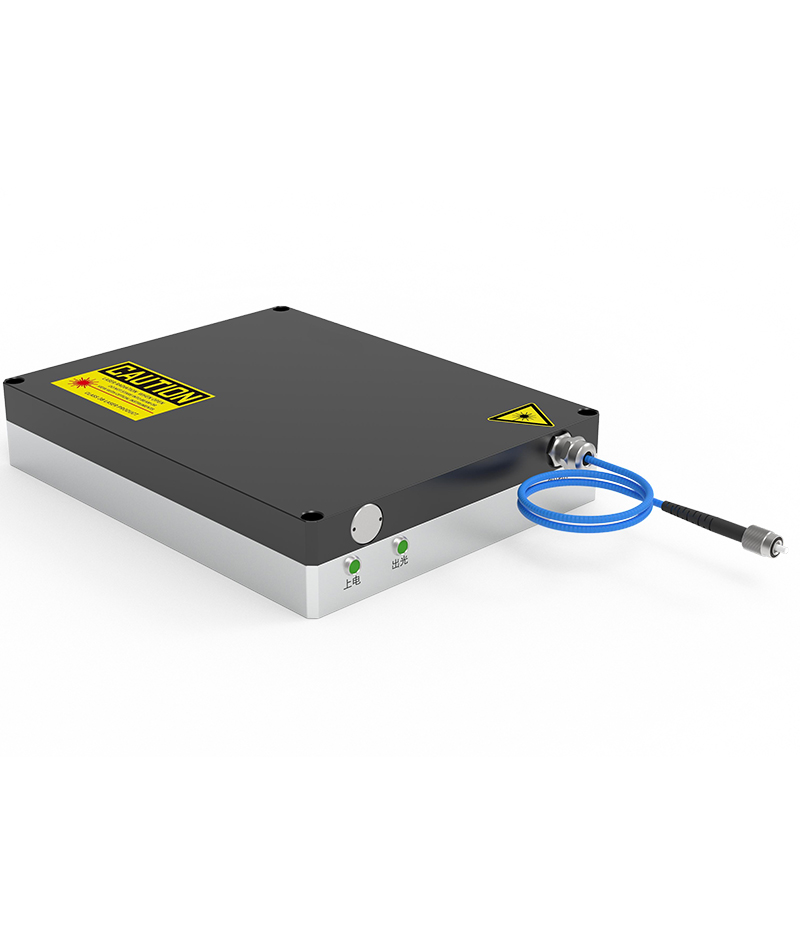

NPFL Series Nanosecond Pulsed Fiber Laser
The NPFL series nanosecond pulsed fiber laser is a high-performance laser featuring ultra-high repetition rate (up to MHz level, adjustable) and high peak power, with ns-level pulse width (adjustable).
Technical Features
- Narrow linewidth seed source
- MOPA (Master Oscillator Power Amplifier) architecture
- Single-pulse energy up to 100 μJ
This product is widely used in:
- Three-dimensional imaging lidar
- Single-photon ranging imaging
- Mid-infrared supercontinuum generation
Key Features
- Narrow linewidth seed source
- MOPA (Master Oscillator Power Amplifier) architecture
- Single-pulse energy up to 100 μJ
Applications
- Lidar imaging
- Single-photon ranging imaging
- Mid-infrared supercontinuum generation
NPFL-1550 Technical Parameters
Optical Parameters
- Central wavelength: 1550 ±1 nm
- Side-mode suppression ratio (SMSR): >35 dB
- Spectral bandwidth: 0.1 – 1 nm
- Repetition rate: 10 kHz – 10 MHz
- Pulse width: 4 – 10 ns
- Pulse energy @10 kHz: 100 μJ
- Peak power: up to 15 kW
- Energy stability (RMS): ≤2%
- Pulse delay adjustment: 0.05 – 1 μs
- Timing jitter: 0.1 – 1 ns
- Optical pulse rise time: 70 – 200 ps
- Seed laser output power: up to 2 mW
Physical & Environmental
- Dimensions: 210 × 165 × 40 mm³
- Weight: 1.15 kg
- Operating temperature: –10 to +50°C
- Storage temperature: –20 to +60°C
- Relative humidity: 0–80% RH
Functional Parameters
- Output signal: Electrical pulse
- Fiber output type: 25/300 μm, 0.1 NA
- Fiber connector: FC/APC or customized
- Communication interface: RS232
- Trigger mode: Internal / External
- Cooling method: Conduction cooling
- Power supply: 24 V DC
- Average power consumption: ≤30 W
NPFL-1064 Technical Parameters
Optical Parameters
- Central wavelength: 1064 ±1 nm
- Side-mode suppression ratio (SMSR): >35 dB
- Spectral bandwidth: 0.1 – 1 nm
- Repetition rate: 10 kHz – 10 MHz
- Pulse width: 4 – 10 ns
- Pulse energy @10 kHz: 60 μJ
- Peak power: up to 15 kW
- Energy stability (RMS): ≤2%
- Pulse delay adjustment: 0.05 – 1 μs
- Timing jitter: 0.1 – 1 ns
- Optical pulse rise time: 70 – 200 ps
- Seed laser output power: up to 2 mW
Functional Parameters
- Output signal: Electrical pulse
- Fiber output type: 25/300 μm, 0.1 NA
- Fiber connector: FC/APC or customized
- Communication interface: RS232
- Trigger mode: Internal / External
- Cooling method: Conduction cooling
- Power supply: 24 V DC
- Average power consumption: ≤30 W
Physical & Environmental
- Dimensions: 210 × 165 × 40 mm³
- Weight: 1.15 kg
- Operating temperature: –10 to +50°C
- Storage temperature: –20 to +60°C
- Relative humidity: 0–80% RH
