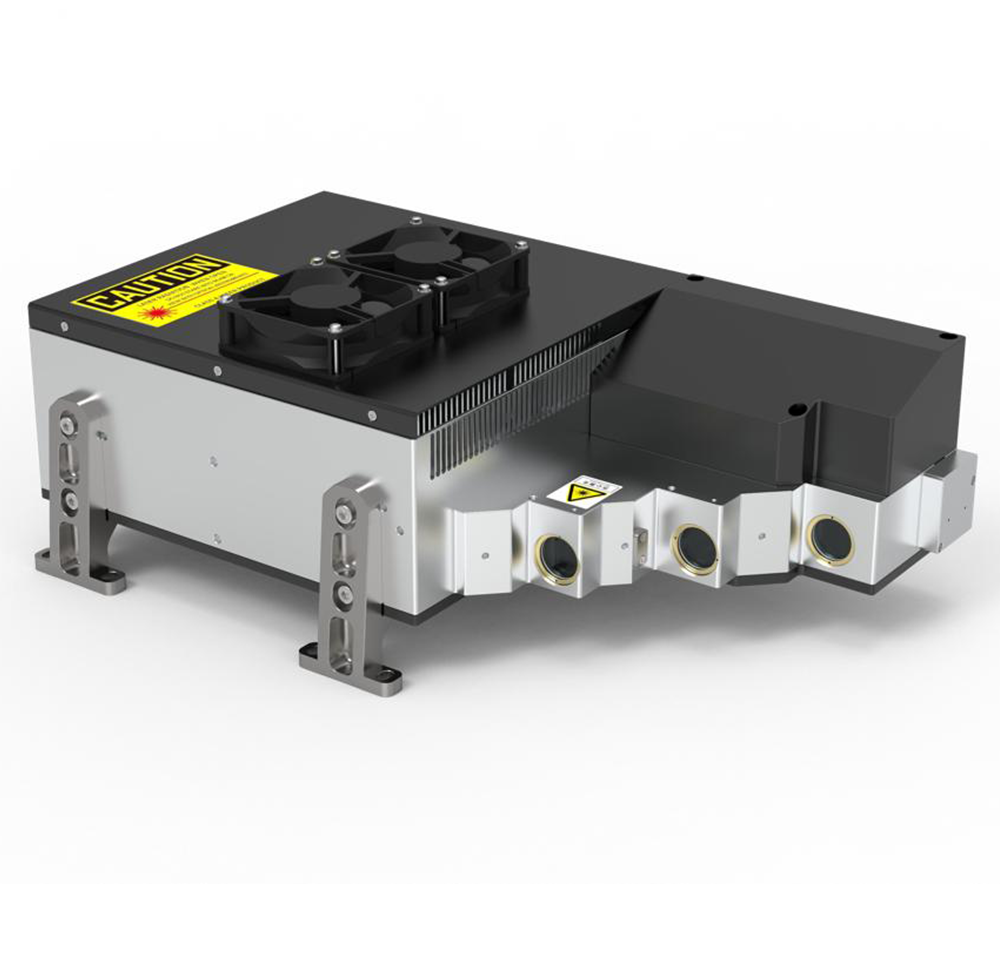

AQNL Series Nanosecond Laser
The AQNL nanosecond laser series features:
- Output pulse width <2 ns
- Excellent beam quality
- Output timing jitter <1 ns
- Energy up to 20 mJ
Wavelength expansion available:
- 532 nm
- 355 nm
- 1064 nm
Key Features
- High peak power
- Pulse width adjustable down to 800 ps
- No pulse trailing
- Mature and reliable design
Applications
- Atmospheric lidar
- Marine laser detection
- Laser ultrasonics
- Single-photon detection
AQNL Technical Parameters
Models
- AQNL-3000
- AQNL-6000
Key Specifications
- Energy @1064nm: ≥1 mJ / ≥2 mJ
- Energy @532nm: ≥1.5 mJ / ≥1 mJ
- Energy @355nm: ≥0.7 mJ / ≥1 mJ
- Repetition rate: 1 kHz / 1–10 kHz
- Beam quality: M² ≤2
- Cooling: Air / Water
- Power: AC 220V
- Lifetime: ≥8000 hours
AQNL Technical Parameters
Models
- AQNL-3000
- AQNL-6000
Key Specifications
- Energy @1064nm: ≥1 mJ / ≥2 mJ
- Energy @532nm: ≥1.5 mJ / ≥1 mJ
- Energy @355nm: ≥0.7 mJ / ≥1 mJ
- Repetition rate: 1 kHz / 1–10 kHz
- Beam quality: M² ≤2
- Cooling: Air / Water
- Power: AC 220V
- Lifetime: ≥8000 hours
AQNL Mechanical Dimensions
Models
- AQNL-3000 laser head dimensions
- AQNL-6000 laser head dimensions
- Installation drawings
