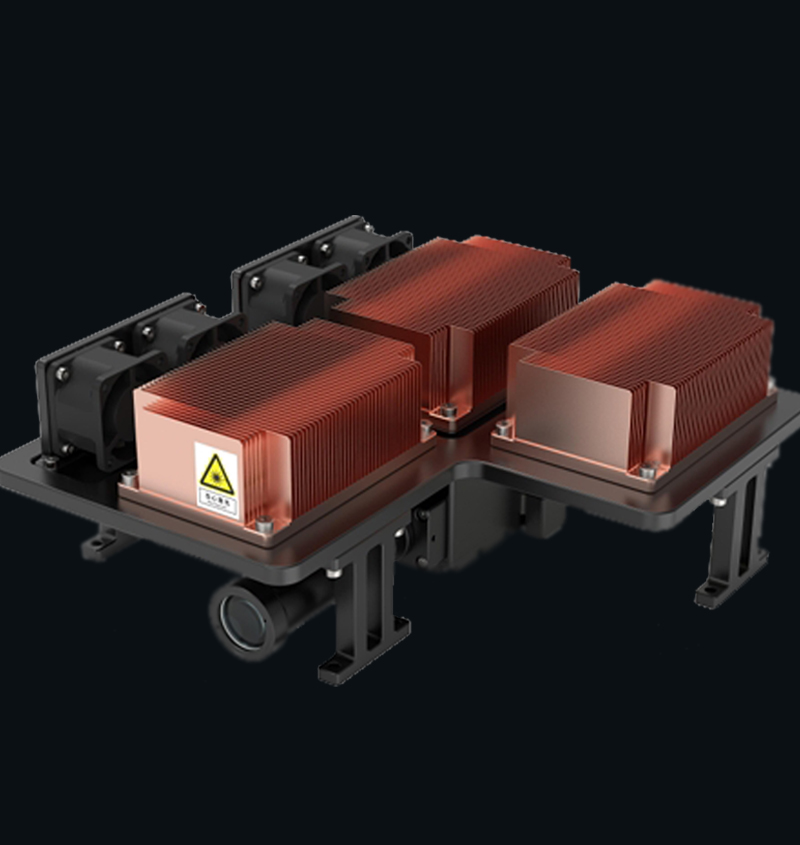

AOML Series Microsecond Pulse Laser
The AOML series features:
- High peak power
- kHz repetition rate
- Pulse width around 10 ns
Uses end-pumped + acousto-optic Q-switch design, full air-cooling, suitable for:
- Wide temperature range: –20°C to +60°C
- Long-term stable operation
- 24/7 industrial use
Applications
- Atmospheric particle detection
- Laser ranging
- Optical imaging
- Laser ultrasonics
Key Features
- Compact structure, high reliability
- Wide operating temperature range
- Full air cooling
- Mature and stable technology
AOML Technical Parameters
We provide end-to-end laser solutions, from concept design and prototyping to custom manufacturing and system integration.
Our services support scientific, industrial, and OEM requirements with precision-engineered laser technologies.
Our services support scientific, industrial, and OEM requirements with precision-engineered laser technologies.
Models
- AOML-150
- AOML-500
Key Specifications
- Pulse energy @1064nm: ≥150 mJ / ≥500 mJ
- Pulse energy @532nm: ≥150 mJ / ≥500 mJ
- Energy stability (RMS): ≤2%
- Pulse width: 8–12 ns
- Repetition rate: 10 kHz / 5 kHz
- Beam quality: M² ≤1.5
- Beam divergence: ≤0.15 mrad
- Power supply: 24V DC
- Cooling: Air
- Lifetime: ≥10,000 hours
AOML Mechanical Dimensions
- Laser head dimensions (AOML-150 / 500)
- Controller module dimensions
- Installation and mounting diagrams
